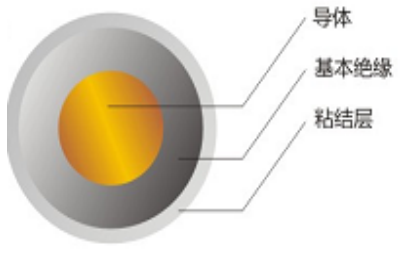

自粘漆包铜线

◎适用标准： JIS C 3202 “ 自融聚胺酯漆包铜线 ”。

◎用途： 一般线圈、音圈、耦合马达。
●Applicable standard： JIS C 3202 “Self-bonding polyurethane enamelled copper wire”.
●Applications： General coils, voice coils, cup motors

◎特点 Features

◎使用方法：溶剂接著使用甲醇或变性酒精。
●Bonding： Use methyol alcohol, denatured alcohol.

◎制造范围 Thermal class and range of manufacture

 HB(热风型）  Hot air type

◎适用标准： JIS C 3202 “ 自粘聚氨酯漆包铜线 ”。

◎用途： 马达用空心线圈、小型马达、印表机磁头线圈。

●Applicable standard： JIS C 3202 “Self-bonding polyurethane  enamelled copper wire”.
●Applications： Air core coils for motors, small motors, and printer head coils.

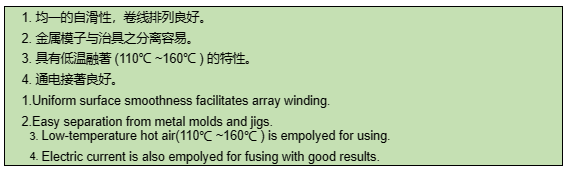

◎特点 Features

◎使用方法：热风

●Bonding：hot air

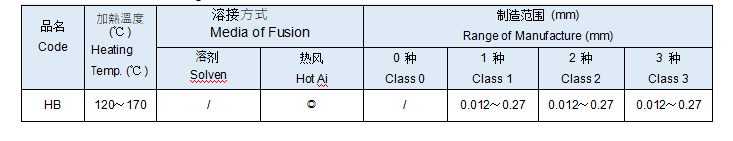

◎制造范围 Thermal class and range of manufacture
