全绝缘零缺陷漆包铜圆线FIW

FIW 超高膜厚 ‧H级可焊聚氨脂漆包铜线

Super High insulation film thickness - Class H Solderable Polyurethane Enamelled Copper Wire

◎适用标准：NEMA MW 85C、IEC60317-56

◎用途：BMS变压器小型变压器、开关电源、智能电表等，也可代替三层绝缘线应用于各类对耐压要求高的变压器产品。

●Applicable standard：NEMA MW85C、IEC60317-56

●Applications：BMS transformers, switching power supplies, smart meters, etc

., can also be used in place of three-layer insulated wires in various transformer products that require high withstand voltage.

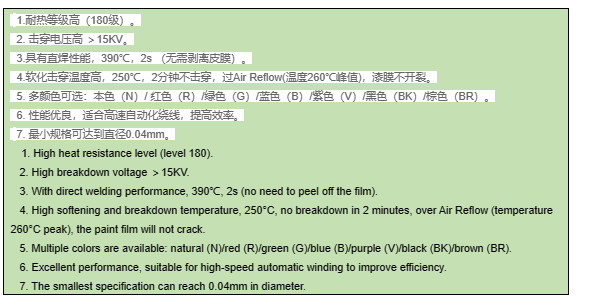

◎特点 Features

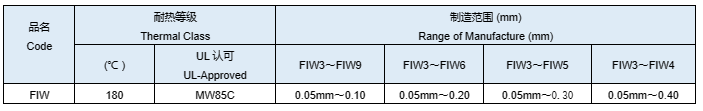

◎耐热等级与制造范围 Thermal class and range of manufacture
