Polyurethane enamelled round copper wire

 This wire is coated and baked with varnish over the conductor. The insulation is mainly composed of polyurethane resin made from polyol cross-linked with isocyanate.

●Applicable standard：JIS C 3202、NEMA MW75C、IEC 60317-4.

●Applications：Relay coils, small motors,small transformers, coils for  telecommunication equipment.

◎Features

◎Thermal class and range of manufacture

UEW/NY  Polyurethane overcoated with Nylon Enamelled Copper Wire

Covered with nylon resin over the polyurethane film, the double layered wire is highly resistant to deterioration caused by working.

●Applicables standard：JCS2409、NEMA MW28C、IEC60317-19.

●Applications：Small motors, small transformers.

◎ Features

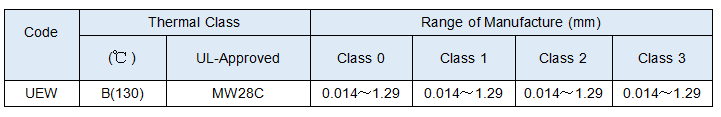

◎Thermal class and range of manufacture
