Class H Polyurethane Enamelled Copper Wire

●Applicable standard：JCS 2394、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

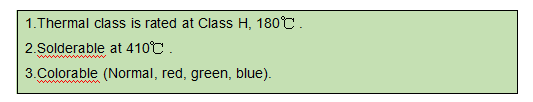

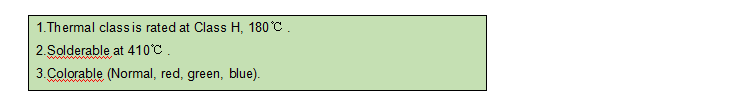

◎Features

◎Thermal class and range of manufacture

UEWH/NY  Class H  Polyurethane overcoated with Nylon Enamelled Copper Wire

 Covered with two layers of film-nylon resin over Class H solderable polyurethane insulation, this wire is highly resistant to deterioration caused by working.

●Applicable standard：JCS 2394、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

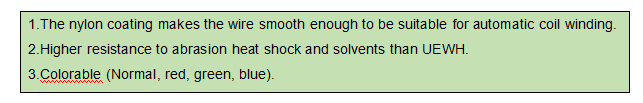

◎Features

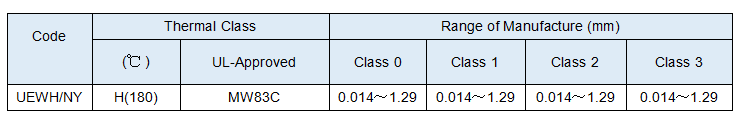

◎Thermal class and range of manufacture

Class H  Polyurethane overcoated with Nylon Enamelled Copper Wire

 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

●Applicable standard：JCS 2394、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

◎特点 Features

◎耐热等级与制造范围 Thermal class and range of manufacture

 Class 200  Polyurethane Enamelled Copper Wire

●Applicable standard：JCS 2394、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

◎ Features

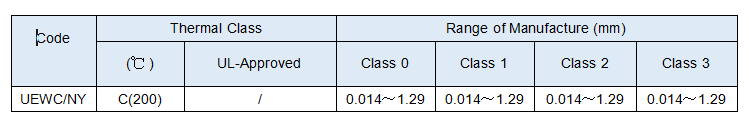

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWC/NY  Class 200  Polyurethane overcoated with Nylon Enamelled Copper Wire

 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

●Applicable standard：JCS 2394、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

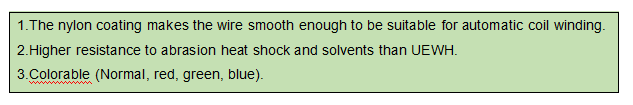

◎Features

◎Thermal class and range of manufacture
