Class H Solderable Polyesterimide Enamelled Copper Wire

This wire is the same as conventional polyesterimide enamelled copper wire except solderability has been added to eliminate terminal preparation work.

●Applicable standard：JCS 2394、NEMA MW77C、IEC60317-23

●Applications：Small motors, small transformers.

◎Features

◎Thermal class and range of manufacture

EIW   Polyesterimide Enamelled Copper Wire

 This wire is enameled with insulating varnish,main ingredient is isocyanuric polyesterimide resin.

●Applicable standard：JIS C 3202、NEMA MW74C.

●Applications：Heat-resistant general-purpose motors, automotive parts, transformers.

◎Features

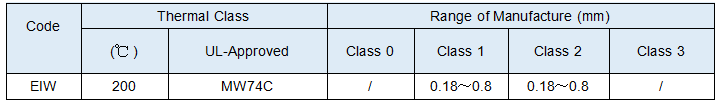

◎Thermal class and range of manufacture

EI/AIW Polyesterimide overcoated with Polyamideimide Enamelled Copper Wire

This wire has double layers of enamelled coatings-polyamideimide for upper layer and polyesterimide for lower layer.

◎JCS 2392〝 NEMA MW35C、MW73C、IEC60317-13。

◎Thermal class and range of manufacture

   AIW  Polyamideimide Enamelled Copper wire

This wire is coated with an insulating varnish and main ingredient is polyamideimide resin.

●Applicable standard：JCS 2334、NEMA MW81C、IEC60317-57.

●Applications：Heat-resistant motors, motors for electric tools. Heatresistant dry type transformers, lifting magnet coils.

◎Features

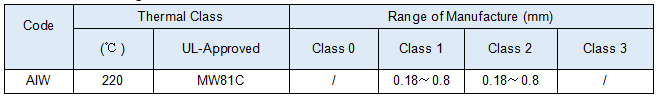

◎Thermal class and range of manufacture

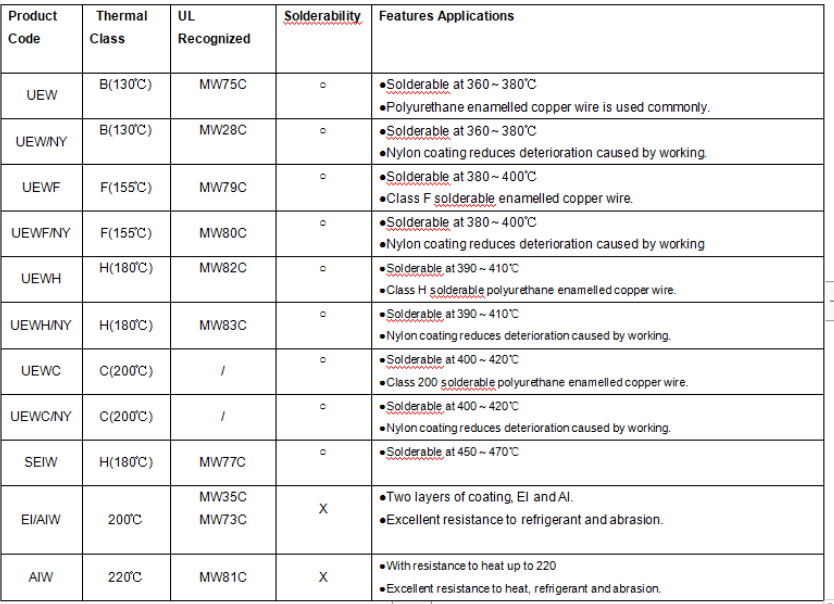

◎Comparative Table - General Magnet Wires
