Class F Polyurethane Enamelled Copper Wire

●Applicable standard：JCS 2394、NEMA MW79C、IEC60317-20.

●Applications：Small motors, fly back transformers.

◎ Features

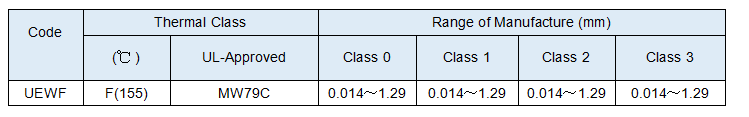

◎Thermal class and range of manufacture

UEWF/NY  Class F  Polyurethane overcoated with Nylon Enamelled Copper Wire

Covered with nylon resin over the class F solderable film, the double layered wire is highly resistant to deterioration caused by working.

●Applicable standard：JIS C 3202、NEMA MW80C、IEC60317-3.

●Applications：General purpose motors. portable generators, transformer, solenoids relay coils.

◎ Features

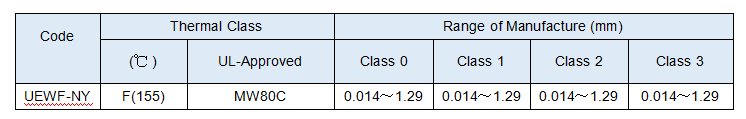

◎Thermal class and range of manufacture

UEWH  Class H  Polyurethane Enamelled Copper Wire

●Applicable standard：JCS 2394、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

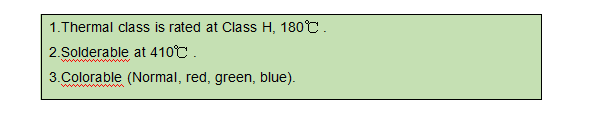

◎Features

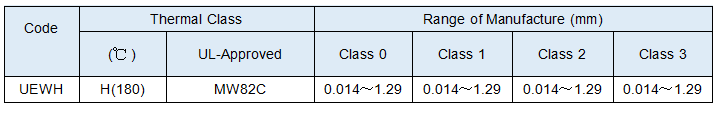

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWH/NY   Class H  Polyurethane overcoated with Nylon Enamelled Copper Wire

 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

●Applicable standard：JCS 2394、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

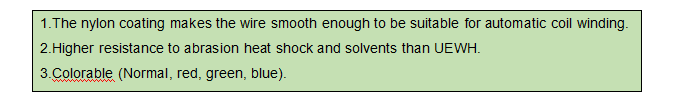

◎ Features

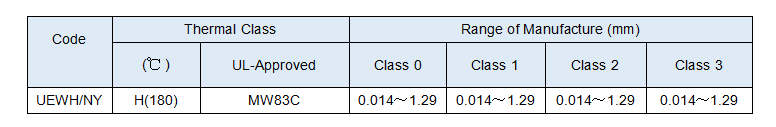

◎耐热等级与制造范围 Thermal class and range of manufacture
