Litz Wires (n/d)

Litz wire is also called “stranded wire” and is mainly used for high- frequency coils. A variety of enamelled conductors are available in response to diverse temperature indices.

●Applicable standard：JSW Standard.

●Applications：High-frequency transformers,high-frequency coils.

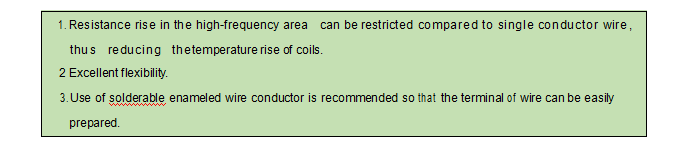

◎ Features

◎Range of manufacture

1.Conductor Dia.： 0.03~0.60 mm

2.Insulating film：All of our magnet wires can be stranded as Litz wires.

3.No. of stranded wires：2~2500 (varies from diameter of conductors).

4.Twist of stranded wires：7~99/ft (varies from diameter of conductors).

 5.Wisted sectional areaea：0.035~6.0mm.

●Concentric, compound and other strand methods are vailable. (Compound strand method can be used when the number of stranded wires is more than 30).

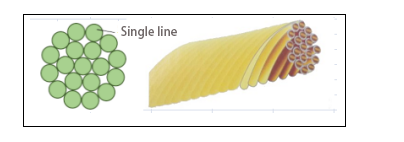

◎Structure

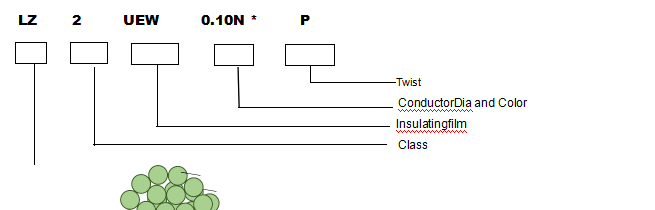

Wire designation
