Fully insulated zero defect enameled copper round wire FIW

Polyurethane Fully Insulated Fiw Zero-Defect Insulated Round Copper Wire forSolderable ApplicationsThermal Class 180

FIW ultra-high film thickness H-grade solderable polyurethane enameled copper wire

Super High insulation film thickness - Class H Solderable Polyurethane Enamelled Copper Wire

●Applicable standard：NEMA MW85C、IEC60317-56

●Applications：Small transformers, switching power supplies, etc., can also be used in place of three-layer insulated wires in various transformer products that require high withstand voltage.

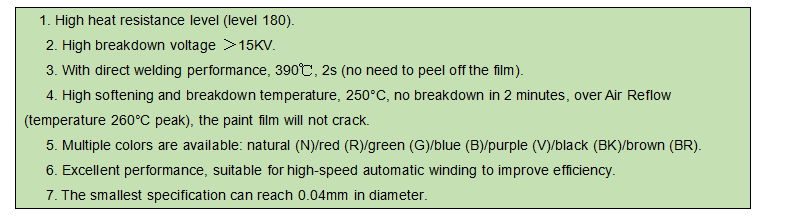

◎ Features

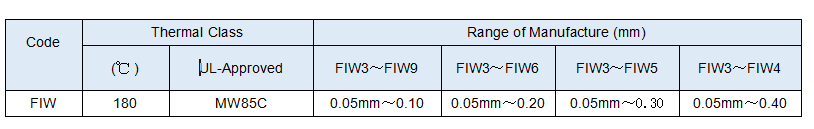

◎Thermal class and range of manufacture

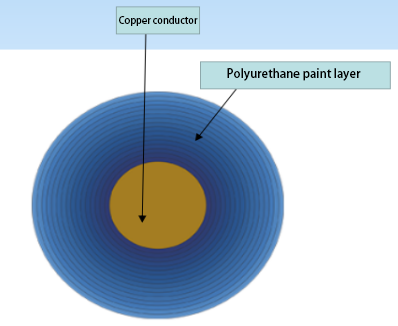

◎Structure
