H级可焊聚脂亚胺漆包铜圆线

经改良的聚酯亚胺 (EI) 具有可直焊特性，有效去除末端的漆膜。 This wire is the same as conventional polyesterimide enamelled copper wire except solderability has been added to eliminate terminal preparation work.

◎适用标准：〝可直焊漆包铜线〞、NEMA MW77C、IEC60317-23

◎用途：小型马达、小型变压器。

●Applicable standard：NEMA MW77C、IEC60317-23

●Applications：Small motors, small transformers.

◎特点 Features

◎耐热等级与制造范围 Thermal class and range of manufacture

EIW  聚脂亚胺漆包铜圆线          Polyesterimide Enamelled Copper Wire

这种线材中绝缘漆膜的主要成份为异三聚氰酸系 (Isocyanuric) 之聚酯 亚胺树脂 (El resin)。

This wire is enameled with insulating varnish,main ingredient is isocyanuric polyesterimide resin.

◎适用标准：〝聚酯亚胺漆包铜线〞、NEMA MW74C、IEC60317-8。

◎用途：耐热一般用马达、汽车零件、变压器。

●Applicable standard：NEMA MW74C、IEC60317-8.

●Applications：Heat-resistant general-purpose motors, automotive parts, transformers.

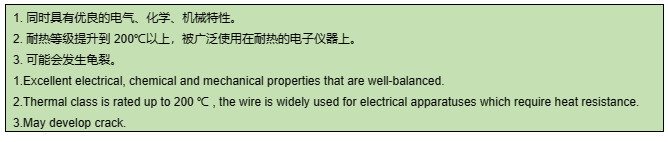

◎特点 Features

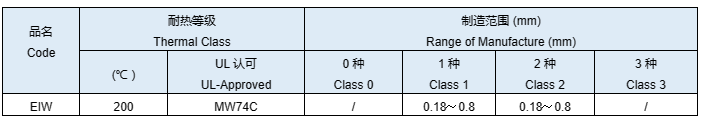

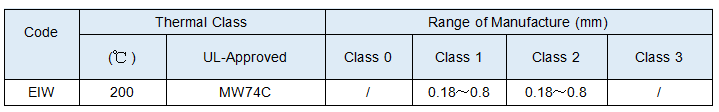

◎耐热等级与制造范围 Thermal class and range of manufacture

EI/AIW  聚脂亚胺聚酰胺酰亚胺漆包铜圆线   Polyesterimide overcoated with Polyamideimide Enamelled Copper Wire

这种线材有双层漆膜，在聚酯亚胺的外层加上聚酰胺亚胺。

This wire has double layers of enamelled coatings-polyamideimide for upper layer and polyesterimide for lower layer.

 ◎适用标准：〝聚酯亚胺、聚酰胺亚胺漆包铜线〞、 NEMA MW35C、MW73C、IEC60317-13。

◎用途：耐热线圈、变压器、耐热马达。

◎特点 Features

◎耐热等级与製造范围 Thermal class and range of manufacture

   AIW 聚酰胺酰亚胺漆包铜圆线               Polyamideimide Enamelled Copper wire

   这种线材中绝缘漆膜的主要成份为聚酰胺亚胺树脂。

This wire is coated with an insulating varnish and main ingredient is polyamideimide resin.

◎适用标准：〝聚酰胺亚胺漆包铜线〞、NEMA MW81C、 IEC60317-57。

◎用途：耐热马达、电动工具用马达、耐热乾式变压器、 电感线圈。

●Applicable standard：NEMA MW81C、IEC60317-57.

●Applications：Heat-resistant motors, motors for electric tools. Heatresistant dry type transformers, lifting magnet coils.

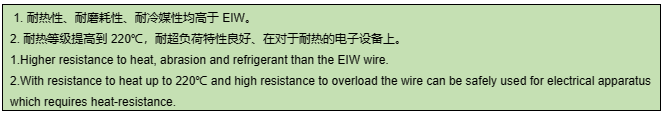

◎特点 Features

◎耐热等级与制造范围 Thermal class and range of manufacture

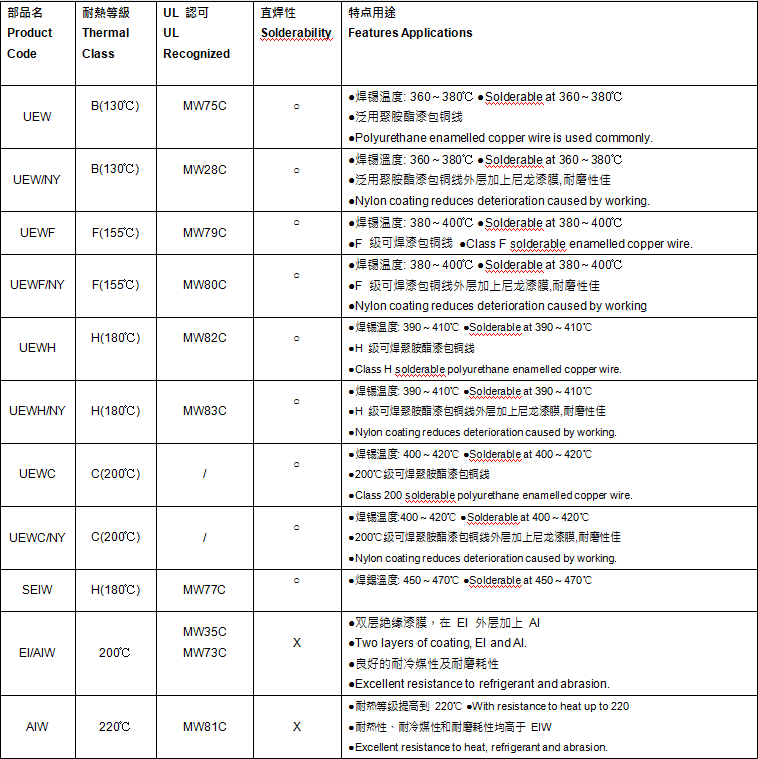

一般漆包铜线特性对照表
