F级聚氨酯漆包铜圆线

◎适用标准：JIS C3202〝可直焊漆包铜线〞、NEMA MW79C、 IEC 60317-20。

◎用途：耐热性较高之小马达、驰返变压器。

●Applicable standard：JIS C3202、NEMA MW79C、IEC60317-20.

●Applications：Small motors, fly back transformers.

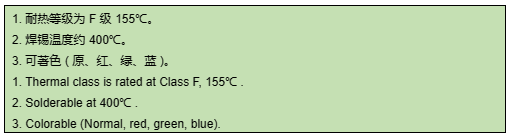

◎特点 Features

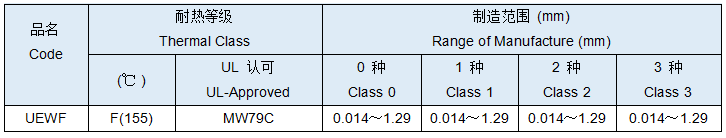

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWF/NY  F级聚氨酯/聚酰氨复合漆包铜圆线 Class F  Polyurethane overcoated with Nylon Enamelled Copper Wire

在 UEWF 耐热可直焊性漆膜外再覆盖尼龙树脂漆膜，具有耐加工及耐 劣化的特性。

Covered with nylon resin over the class F solderable film, the double layered wire is highly resistant to deterioration caused by working.

◎适用标准：JIS C 3202〝聚酯漆包铜线〞、NEMA MW80C、 IEC 60317-3。

◎用途：一般用马达、携带型发电机、变压器、磁化线圈、 继电器线圈。

●Applicable standard：JIS C 3202、NEMA MW80C、IEC60317-3.

●Applications：General purpose motors. portable generators, transformer, solenoids relay coils.

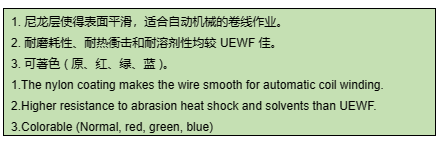

◎特点 Features

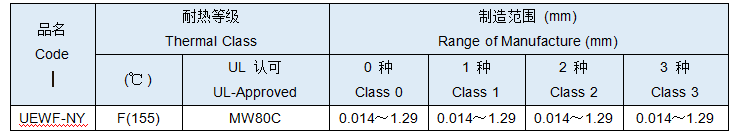

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWH  H级聚氨酯漆包铜圆线                      Class H  Polyurethane Enamelled Copper Wire

◎适用标准：JIS C3202〝可直焊漆包铜线〞、NEMA MW82C、 IEC60317-51。

◎用途：小型马达、小型变压器。

●Applicable standard：JIS C3202、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

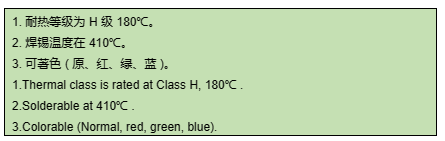

◎特点 Features

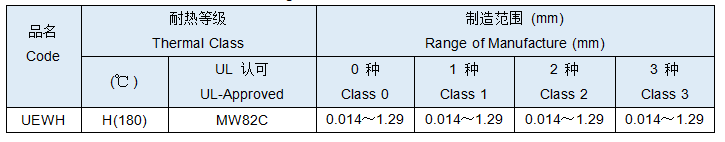

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWH/NY  H级聚氨酯/聚酰氨复合漆包铜圆线 Class H  Polyurethane overcoated with Nylon Enamelled Copper Wire

在 H 级可直焊漆膜外，加上尼龙树脂漆膜，具有耐加工及耐劣化的特性。 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

◎适用标准：JIS C3202〝可直焊漆包铜线〞、NEMA MW83C、 IEC 63017-55。

◎用途：小型马达、小型变压器。

●Applicable standard：JIS C3202、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

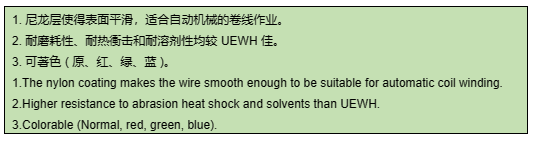

◎特点 Features

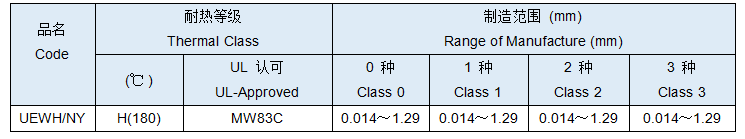

◎耐热等级与制造范围 Thermal class and range of manufacture
