聚氨酯漆包铜圆线

这种线材是在导体表面烤上绝缘涂料，其主要成份为聚氨酯树脂 (PU resin)，经由多元醇(Polyol)与异氰酸盐(Isocyanate)的架桥反应而成。

This wire is coated and baked with varnish over the conductor. The insulation is mainly composed of polyurethane resin made from polyol cross-linked with isocyanate.

◎适用标准：JIS C 3202〝聚胺酯漆包铜线〞、NEMA MW 75C、 IEC 60317-4。

◎用途：继电器线圈、小型马达、小型变压器、通讯设备用线圈。

●Applicable standard：JIS C 3202、NEMA MW75C、IEC 60317-4.

●Applications：Relay coils, small motors,small transformers, coils for  telecommunication equipment.

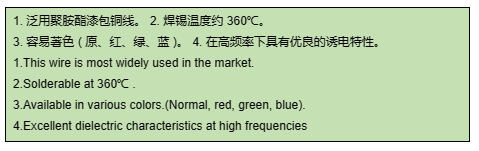

◎特点 Features

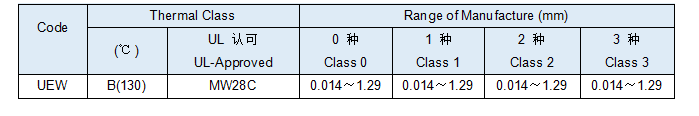

◎耐热等级与制造范围 Thermal class and range of manufacture

UEW/NY  聚氨酯/聚酰氨复合漆包铜圆线 Polyurethane overcoated with Nylon Enamelled Copper Wire

在绝缘的聚氨酯漆膜之外再覆盖一层尼龙漆膜，具耐加工及耐劣化特性。

Covered with nylon resin over the polyurethane film, the double layered wire is highly resistant to deterioration caused by working.

◎ 适 用 标 准：JCS2409〝 聚 胺 酯、 聚 醯 胺 漆 包 铜 线 〞、NEMA MW28C、IEC 60317-19。

◎用途：小型马达、小型变压器。

●Applicables standard：JCS2409、NEMA MW28C、IEC60317-19.

●Applications：Small motors, small transformers.

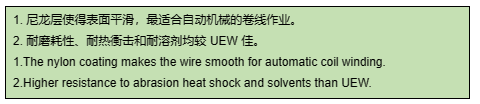

◎特点 Features

◎耐热等级与制造范围 Thermal class and range of manufacture
