H级聚氨酯漆包铜圆线

◎适用标准：JISC 3202〝可直焊漆包铜线〞、NEMA MW82C、 IEC60317-51。

◎用途：小型马达、小型变压器。

●Applicable standard：JISC 3202、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

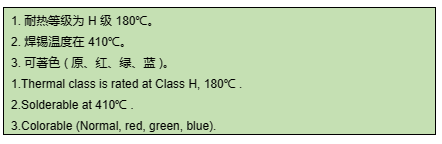

◎特点 Features

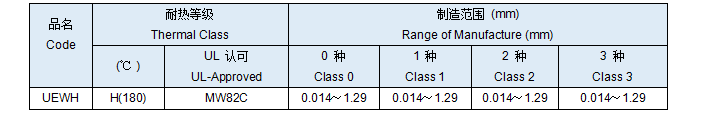

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWH/NY  H级聚氨酯/聚酰氨复合漆包铜圆线 Class H  Polyurethane overcoated with Nylon Enamelled Copper Wire

在 H 级可直焊漆膜外，加上尼龙树脂漆膜，具有耐加工及耐劣化的特性。 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

◎适用标准：JISC 3202〝可直焊漆包铜线〞、NEMA MW83C、 IEC 63017-55。

◎用途：小型马达、小型变压器。

●Applicable standard：JISC 3202、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

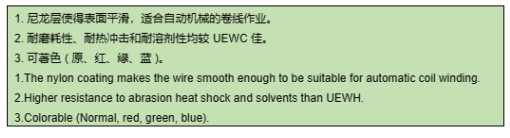

◎特点 Features

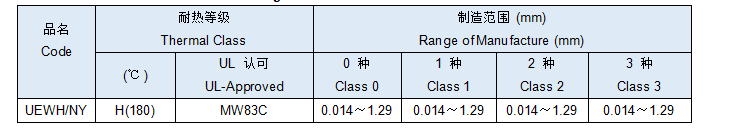

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWC 200级聚氨脂漆包铜圆线                     Class 200  Polyurethane Enamelled Copper Wire

◎适用标准：JISC 3202〝可直焊漆包铜线〞、NEMA MW82C、 IEC60317-51。

◎用途：小型马达、小型变压器 。

●Applicable standard：JISC 3202、NEMA MW82C、IEC 60317-51

●Applications：Small motors, small transformers.

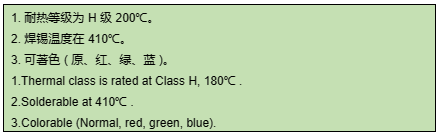

◎特点 Features

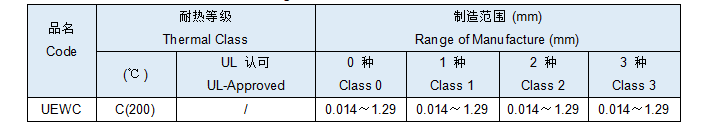

◎耐热等级与制造范围 Thermal class and range of manufacture

UEWC/NY  200级聚氨酯/聚酰氨复合漆包铜圆线 Class 200  Polyurethane overcoated with Nylon Enamelled Copper Wire

在 200 级可直焊漆膜外，加上尼龙树脂漆膜，具有耐加工及耐劣化的特性。 Covered with two layers of film-nylon resin over Class H solderable

polyurethane insulation, this wire is highly resistant to deterioration caused by working.

◎适用标准：JISC 3202〝可直焊漆包铜线〞、NEMA MW83C、 IEC 63017-55。

◎用途：小型马达、小型变压器。

●Applicable standard：JISC 3202、NEMA MW83C、IEC 63017-55.

●Applications：Small motors, small transformers.

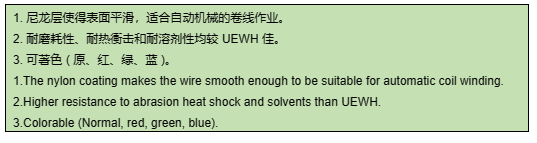

◎特点 Features

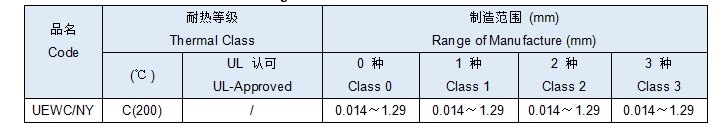

◎耐热等级与制造范围 Thermal class and range of manufacture
